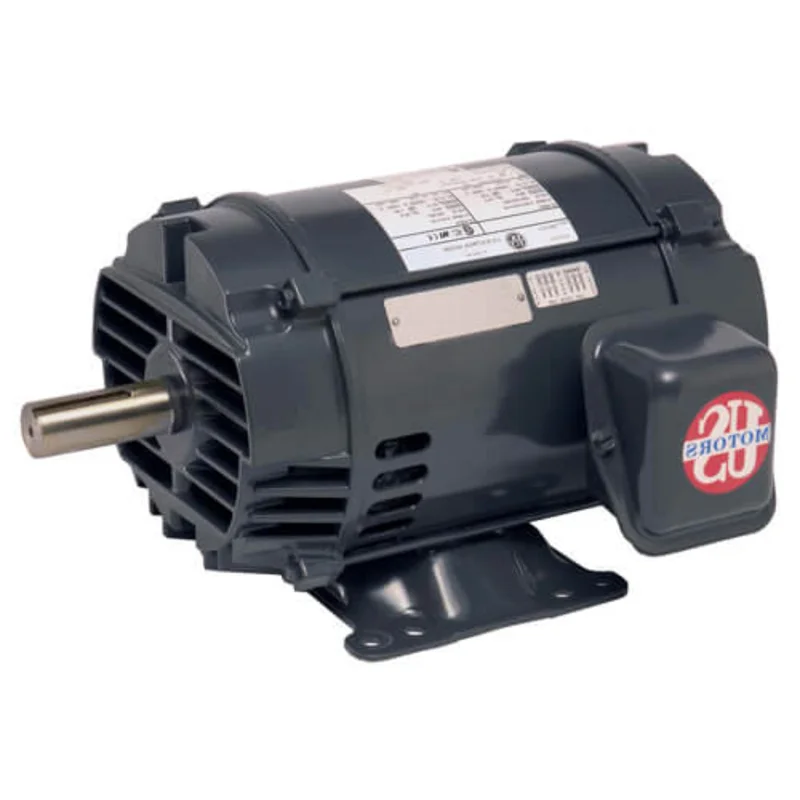

U.S. Motors D25P2D General Purpose Three Phase ODP Horizontal – Footed Motor – D25P2D
The U.S. Motors D25P2D is a general-purpose motor designed for demanding industrial applications. This three-phase motor provides a power output of twenty-five horsepower and operates at eighteen hundred RPM. It features a horizontal footed mount and is suitable for a variety of tasks including running pumps, fans, and compressors.
Product Highlights
This motor is engineered for reliable performance and durability. Its robust construction ensures longevity in various applications, making it a vital component in HVAC systems and industrial machinery.
Features
- Voltage rating: Two hundred eight to two hundred thirty/ four hundred sixty volts.
- Insulation class: F, suitable for continuous duty applications.
- Open drip proof enclosure for added protection against contaminants
Specifications
| Horsepower | 25 HP |
|---|---|
| Service Factor | 1.15 |
| Frame Size | 284T |
| Full Load Amps | 58/29 A |
| Mounting Type | Horizontal – Footed |
| Enclosure Designation | ODP – Open Drip Proof |
| Efficiency | 93.6% |
| Phase | Three Phase |
| Voltage Rating | 208-230/460V |
| Brand | U.S. Motors |
| Part Number | D25P2D |
What our Experts Think
-
1 HP Power: Ideal for HVAC systems, providing reliable performance for small fans, blowers, and compressors.
-
1200 RPM Speed: Operates at lower speeds for applications requiring steady, consistent airflow.
-
TEAO Design: Totally Enclosed Air Over (TEAO) construction ensures protection against dust and moisture while allowing for efficient cooling.
-
Resilient Mounting: Resilient base minimizes vibration and ensures quiet, smooth operation.
-
Single-Phase Operation: Works well with standard residential and light commercial single-phase power systems.
Q&A
Q: What is the U.S. Motors 2686?
A: The 2686 is a 1 HP, single-phase HVAC motor with a 1200 RPM speed, featuring a Totally Enclosed Air Over (TEAO) design and resilient mounting for quiet, vibration-free operation.
Q: Where is this motor typically used?
A: Commonly used in HVAC systems, air handling units, and other applications requiring reliable, low-vibration performance.
Q: Why choose the 2686 model?
A: It offers durability, quiet operation, and efficient cooling, making it perfect for residential or light commercial HVAC systems.
Q: Is the 2686 motor suitable for high-temperature environments?
A: Yes, the TEAO design provides effective cooling even in warm environments, ensuring consistent operation.
Maintenance Tips
-
Keep motor clean to prevent dust and debris from affecting performance and airflow.
-
Lubricate bearings according to the manufacturer’s schedule to ensure smooth operation.
-
Inspect the resilient mount to ensure proper motor alignment and vibration reduction.
-
Check voltage supply (120V) to ensure the motor is running at optimal performance.
-
Monitor motor temperature, noise, and vibration to detect any signs of wear or imbalance.
-
Ensure electrical connections are secure to avoid overheating or electrical faults.
-
Test insulation resistance annually to ensure safe, reliable operation over time.
